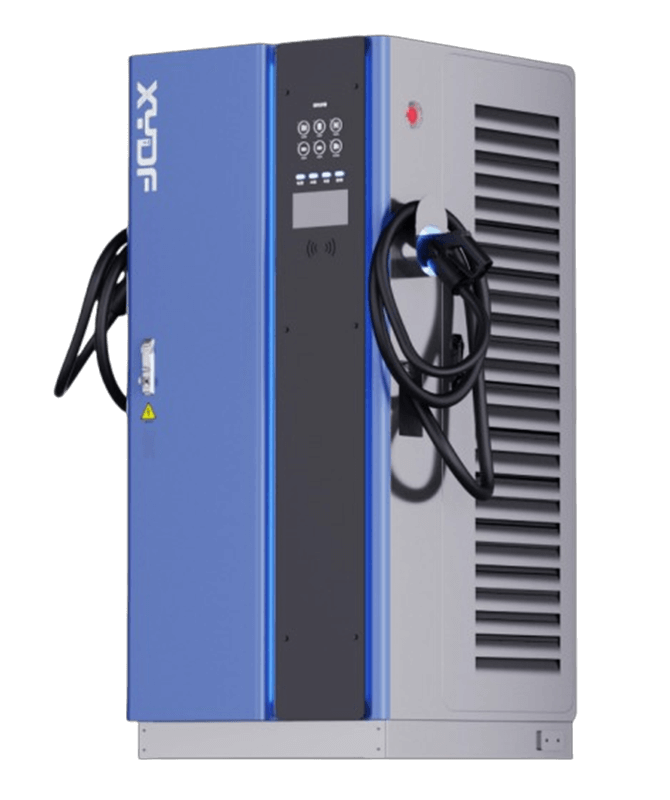

XY DC-EH160-60/80/120/160KW With Double Guns

Applications

XY DC-E180 series fast charger, integrated power conversion, charging control, man-machine interactive control, communication, charging and metering and it has good dustproof and waterproof functions. The waterproof grade can reach IP54.

  • 1. Multiple protection functions, safe, stable, and reliable
  • Modular design, flexible configuration and easy maintenance
  • High degree of protection and w ide voltage output
  • Single gun split or double gun split optional, the number of split cabinet flexible configuration
  • Ring flexible power distribution design, full and reasonable use of idle module resources, to maximize the charging benefits
  • Energy-saving design, greatly reduce the standby power consumption
  • Support CCS2&CCS1&GB/T standard quick charging

Technical parameter

 Model XY DC-EH160--60KW XY DC-EH160-80KW XY DC-EH160-120KW XY DC-EH160-160KW
Input Parameters Power Connection 3P+N+PE
Voltage & Frequency 400VAC±10%; 45~65Hz
Total Harmonic Wave Factor THD<5%
Power Factor ≥0.99
 Output Parameters Voltage 200-/1000Vdc
Max. Current 100A*2 133A*2 200A*2 250A*2
Max. Power 60 kW 80kW 120kW 160kW
Number of Output Plugs 2
Steady Current Precision ±0.5%
Output Current Precision ≤±1% (≥30A)  ≤0.3A (<30A)
Output Voltage Precision ±0.5%
Efficiency ≥94%
 General Specifications Charging Standard EN/IEC 61851-1, EN/IEC 61851-21, EN/IEC 61851-23
DC Plugs IEC 62196-3 (CCS2)
Display 7” TFT Color touch screen
Language English/ Chinese or others on request
RFID System Mifare (Classic, DesFire EV1) or others on request
Communication GPRS /LAN/Wi-Fi
Communication Protocols OCPP1.6,
Place of in Istallation Outdoor
Cooling Mode forced air cooling
Altitude 2000m
Waterproof Standard IP54
Operating Temperature -20~50℃ (Derating over 50℃)
Storage Temperature -40-70℃
Humidity 5%~95% without condensation
Sound Noise <65 dB in all directions
Length of Charging Cable 5m (optional)
Dimensions (W*D*H) 700*600*1500mm

Case recommendation

We’re experts in electric vehicle charging station installations around China in many different settings. We can install a wall or post-mounted EV Chargers, charging station for on-street parking, payment systems and back-office support, Electric Vehicle charging stations in garages, carports and driveways and can integrate with solar PV systems or energy storage system so people can charge their electric vehicles using renewable energy.

...
...
...
...
...
