DC All-In-One 120/160/180 kW With Double Charging Guns

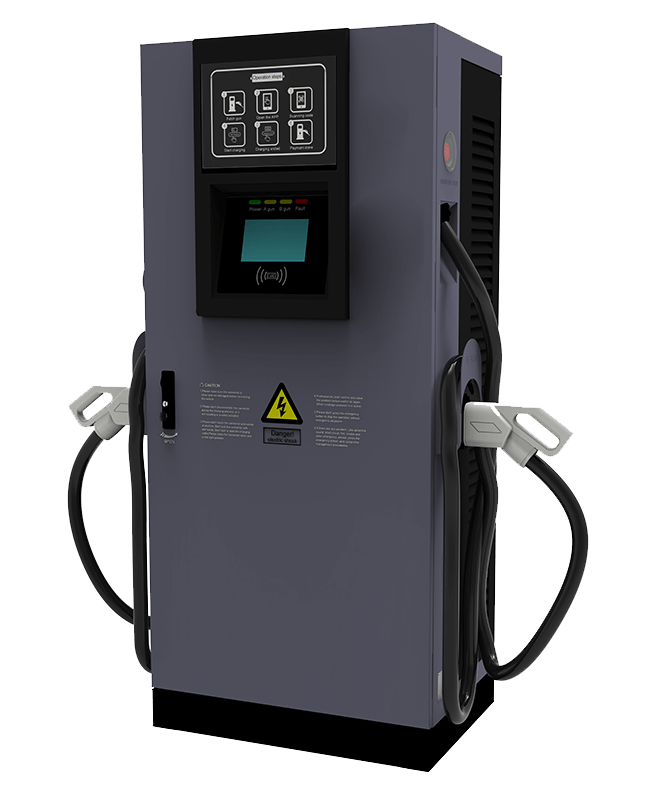

XY DC-E180 series unit-type intelligent DC quick charger support CCS1&CCS2&GB/T
The XY DC-E180 series is an integrated DC fast charger. It combines power conversion, charging connector, user interaction, communication, and metering, all within a dustproof and waterproof enclosure with an IP54 protection rating, making it safe for outdoor use. The charging unit follows a modular design, with each module delivering 30 kW of power. This flexible configuration allows it to meet the charging needs of electric vehicles with varying battery capacities, making it an ideal choice for outdoor fast DC charging.
Energy Saving
Environmental Protection
Energy Saving
Environmental Protection
Applications
XY DC-E180 series fast charger, integrated power conversion, charging control, man-machine interactive control, communication, charging and metering and it has good dustproof and waterproof functions. The waterproof grade can reach IP54.
- 1. Multiple protection functions, safe, stable, and reliable
- Modular design, flexible configuration and easy maintenance
- High degree of protection and w ide voltage output
- Single gun split or double gun split optional, the number of split cabinet flexible configuration
- Ring flexible power distribution design, full and reasonable use of idle module resources, to maximize the charging benefits
- Energy-saving design, greatly reduce the standby power consumption
- Support CCS2&CCS1&GB/T standard quick charging
Technical parameter
| Model | XY DC-E180-120KW | XY DC-E180-160KW | XY DC-E180-180KW | |
| Input Parameters | Power Connection | 3P+N+PE | ||
| Voltage & Frequency | 400VAC±10%;45~65Hz | |||
| Total Harmonic Wave Factor | THD<5% | |||
| Power Factor | ≥0.99 | |||
| Output Parameters | Voltage | 200-1000Vdc | ||
| Max. Current | 250A*2 | |||
| Max. Power | 120 kW | 160 kW | 180 kW | |
| Steady Current Precision | ±0.5% | |||
| Output Current Precision | ≤±1%(≥30A) ≤0.3A(<30A) | |||
| Output Voltage Precision | ±0.5% | |||
| Efficiency | ≥94% | |||
| General Specifications |
Charging Standard | EN/IEC 61851-1, EN/IEC 61851-21, EN/IEC 61851-23 | ||
| DC Plugs | IEC 62196-3 | |||
| Display | 7” TFT Color touch screen | |||
| RFID System | Mifare (Classic, DesFire EV1)or others on request | |||
| Communication | GPRS /LAN/Wi-Fi (optional) | |||
| Communication Protocols | OCPP1.6 | |||
| Place of Installation | Outdoor | |||
| Cooling Mode | forced air cooling | |||
| Altitude | 2000m | |||
| Waterproof Standard | IP54 | |||
| Operating Temperature | -20~50℃(Derating over 50℃) | |||
| Storage Temperature | -40-70℃ | |||
| Humidity | 5%~95% without condensation | |||
| Sound Noise | <65 dB in all directions | |||
| Length of Charging Cable | 5m (optional) | |||
| Dimensions(W*D*H) | 750*550*1700mm | |||
Application Scenario

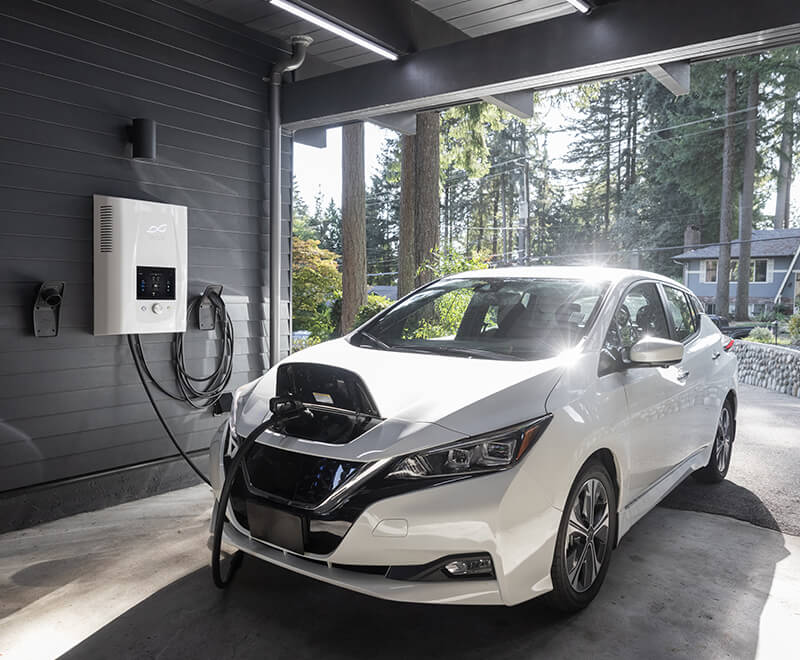

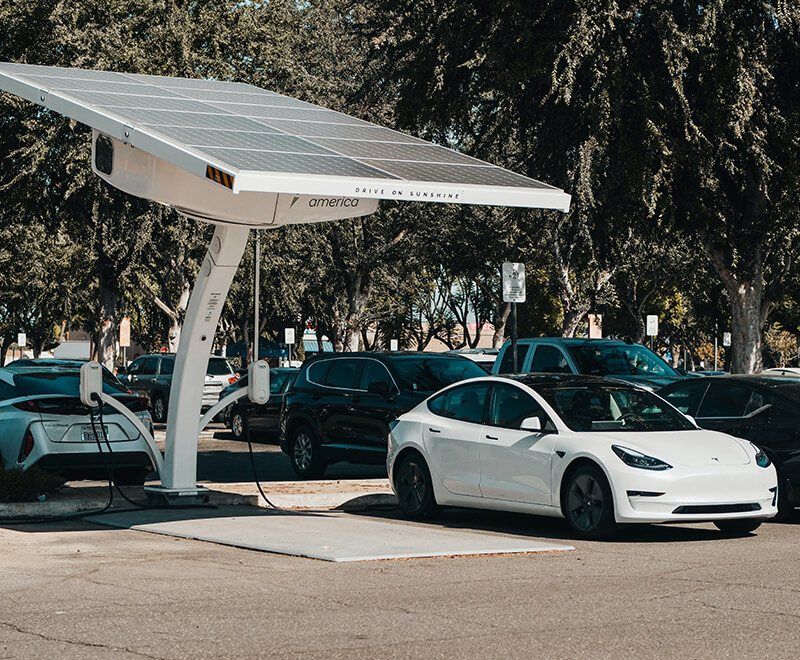

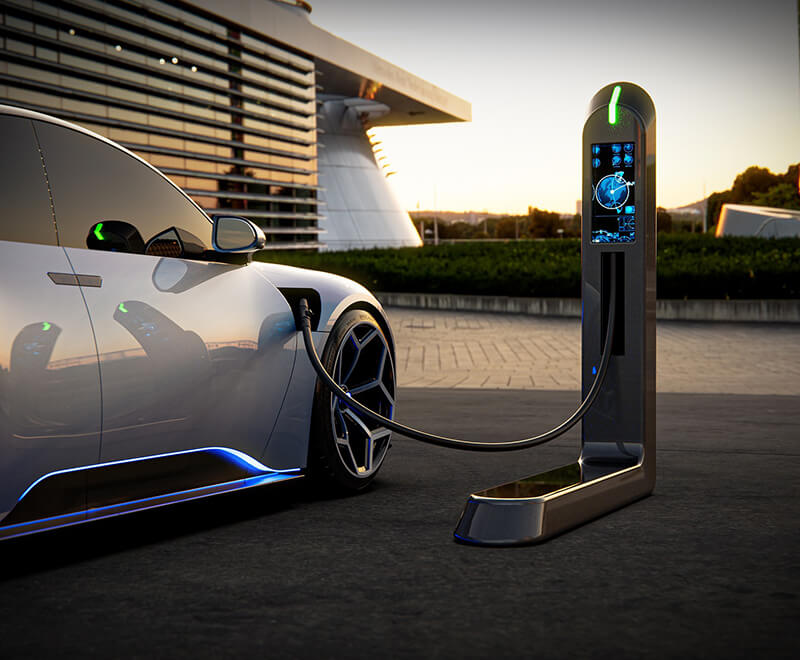

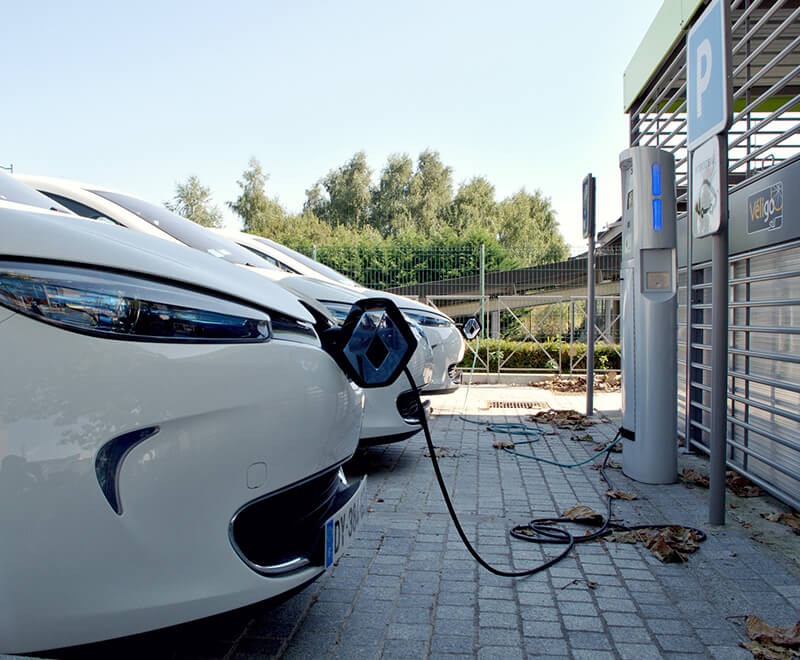

XY DC-E180 series DC charger for electric vehicles are widely used in various scenarios, including highway service areas, urban transportation hubs, shopping centers, fleet operation bases, public charging stations, and some residential and office areas. They provide quick and convenient charging, supporting the efficient operation of EVs.
